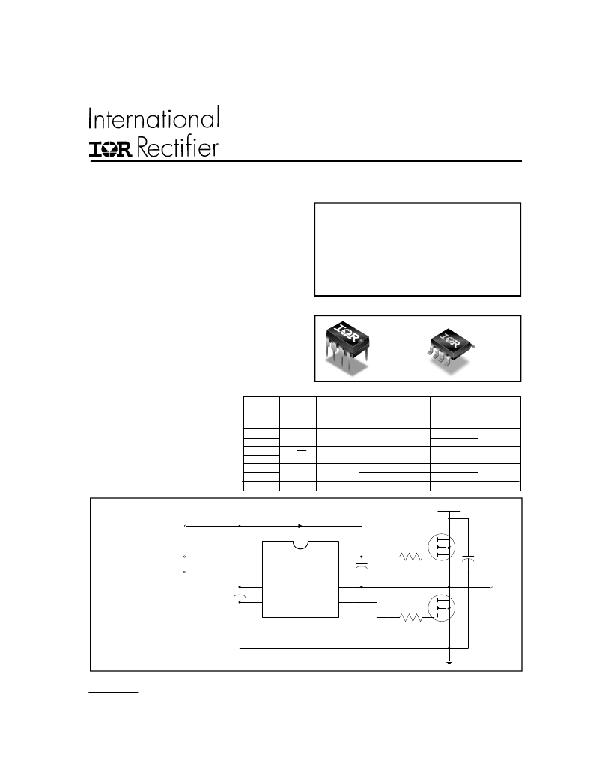

Data Sheet No. PD60277
IRS2304(S)PbF
?
?
?
?
?
?
Features
? Floating channel designed for bootstrap operation
to +600 V
Tolerant to negative transient voltage, dV/dt
immune
Gate drive supply range from 10 V to 20 V
Undervoltage lockout for both channels
3.3 V, 5 V, and 15 V input logic input compatible
? Cross-conduction prevention logic
Matched propagation delay for both channels
Lower di/dt gate driver for better noise immunity
? Internal 100 ns deadtime
? Output in phase with input
? RoHS compliant
HALF-BRIDGE DRIVER
Product Summary
V OFFSET 600 V max.
I O+/- (min) 60 mA/130 mA
V OUT 10 V - 20 V
Delay Matching 50 ns
Internal deadtime 100 ns
t on/off (typ.) 150 ns/150 ns
Package
Description
The IRS2304 is a high voltage, high speed power
MOSFET and IGBT driver with independent high-side
and low-side referenced output channels. Proprietary
HVIC and latch immune CMOS technologies enable
ruggedized monolithic construction.
Feature Comparison
The logic input is compatible with
8-Lead
PDIP
8 Lead
SOIC
standard CMOS or LSTTL output,
down to 3.3 V logic. The output driver
features a high pulse current buffer
stage designed for minimum driver
cross-conduction. The floating chan-
nel can be used to drive an N-chan-
nel power MOSFET or IGBT in the
high-side configuration which oper-
ates up to 600 V.
Part
2106/2301
21064
2108
21084
2109/2302
21094
2304
Input
logic
HIN/LIN
HIN/LIN
IN/SD
HIN/LIN
Cross-
conduction
prevention
logic
no
yes
yes
yes
Deadtime
(ns)
none
Internal 540
Programmable 540 - 5000
Internal 540
Programmable 540 - 5000
Internal 100
Ground Pins
COM
V SS /COM
COM
V SS /COM
COM
V SS /COM
COM
ton/toff
(ns)
220/200
220/200
750/200
160/140
Block Diagram
Vcc
up to 600 V
L IN
H IN
LIN
HIN
VB
HO
(Refer to Lead Assignments for cor-
rect pin configuration). These dia-
grams show electrical connections
only. Please refer to our Application
Notes and DesignTips for proper cir-
cuit board layout.
www.irf.com
VCC
COM
VS
LO
TO
LOAD
1
